Lemo K Series Self-locking Connectors Waterproof IP68 Plug And Socket For Medical Industry

Name: Lemo K Series Self-locking Connectors Waterproof IP68 Plug And Socket For Medical Industry
Brand: Ebuddy Technology Co.,Limited
SKU: EB-TGG.0K.302
Price: 0.50 USD
Availability: InStock

Markenbezeichnung:	Ebuddy
Modellnummer:	EB-TGG.0K.302
MOQ:	1
Preis:	Verhandlungsfähig
Lieferzeit:	3-5days für Proben
Zahlungsbedingungen:	L/C, T/T, Western Union, Paypal

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

CHINA

Zertifizierung:

CE,ROHS

Kontakt:

2 bis 32 Pins

Farbe:

Silber

Materialien:

mit einer Breite von nicht mehr als 20 mm

Größe:

Lemo 0K 1k 2k

Stil:

Stecker und Sockel

Geschlecht:

weiblich und männlich

Schutzniveau:

IP66-IP68

Wohnmaterialien:

Kupferlegierung mit Perlverchromung

Anwendungen:

Medizinisch

Verpackung Informationen:

Farbbox

Versorgungsmaterial-Fähigkeit:

100000 Prozent pro Monat

Hervorheben:

Lemo K Series waterproof connectors

medical industry self-locking connectors

IP68 rated Lemo K connectors

Beschreibung des Produkts

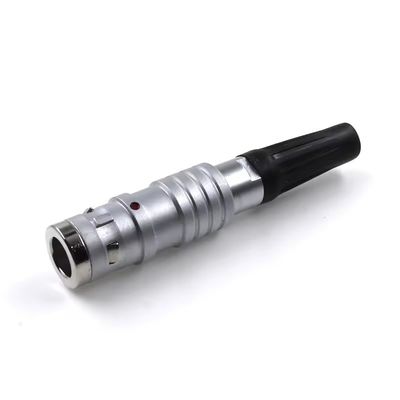

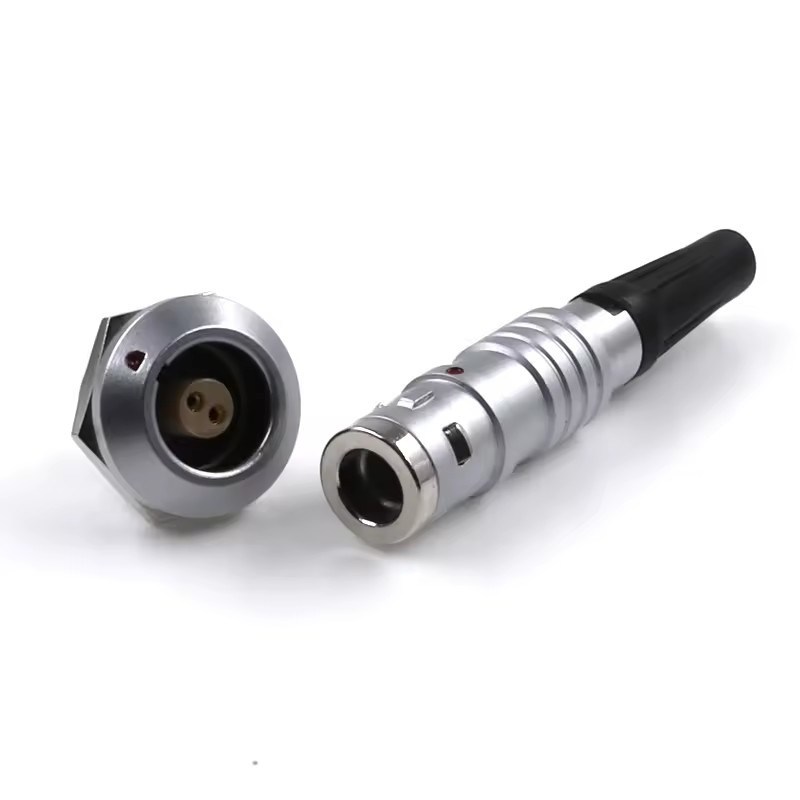

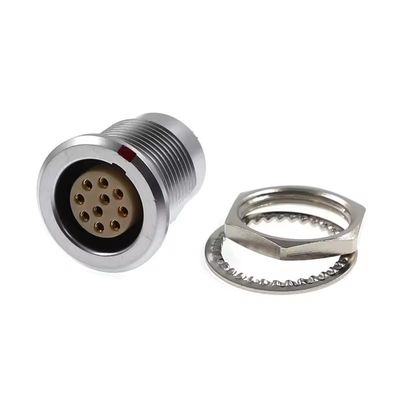

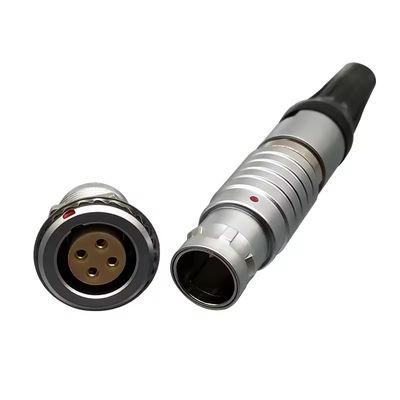

Lemo K Series Self-locking Connectors Waterproof IP68 Plug And Socket For Medical Industry

Features:

Smart push-pull self-latching system
Multi-core types with 2 to 32 pins
Solder or PCB contacts (straight and elbow)
Different kinds of keying options to avoid mismatching
360 degree screening for full EMC shielding
Waterproof connector (IP66 to 68)
Rugged housing for extreme working conditions
High packing density for space savings

Technical Data (Lemo 0K 7pin Example):

Shell Style/Model	FGG male plug and EGG female Receptacle
Keying	1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material	Brass (black chrome) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces
Rated Current	7A
Contact Dia	0.7 mm (0.028in)
R (max)	6.1 mOhm
Contact Type	Solder
Vtest	700-1000V
Endurance (Shell)	5000

Size And Drawings (7pin Example):

Applications:

Broadcast

Audio/video

Medical

Defense Security

Instrumentation

Transportation

Industry

Energy

FAQ:

About price

Q1: Will you please let us have an idea of your price?

A1: In general, our prices are given on a EXW basis.

Q2: Do you give any discount?

A2: I'll surely try my best to help you get those by the best price and good service at the same time, if your order is big enough.

About MOQ:

Q3: What is the MOQ?

A3: No MOQ limited, small order is accepted, all is depend on customer real needs.

About delivery:

Q4: What about our request for the early delivery of the goods?

A4: I think we can meet your requirement.

Q5: How long and how to get sample from us?

A5: 1) If you need some sample, we can make as per your request. You should pay for the transportation freight of samples and sample cost. The sample cost can be refundable if order is confirmed.
2) Lead time for making sample: about 2 days
3) The transportation freight of samples: the freight depends on the weight and packing size and your area.

About company:

Q6: How about your quality control?

A6: All the products will be 100% double check before the shipment.

Q7: How do you make our business long-term and good relationship?

A7: 1) We keep good quality and competitive price to ensure our customers benefit.
2) We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

About payment:

Q8: What payment methods your company accept?

A8: We accept most of the payment methods, but mainly accept TT, LC, Paypal.

Tags:

100% Compatible Lemo Cable Connector K Series Waterproof IP68 Circular Connectors for Industrial Control and Test and Measurement Equipment
